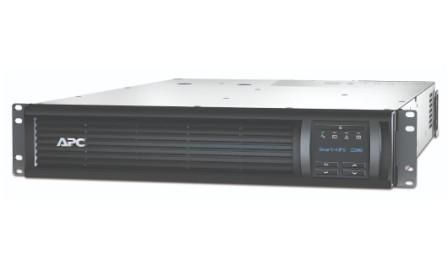

APC SMT3000RMI2UC, Smart UPS 3000VA LCD RM 2U 230V with SmartConnect

Output:-

Output power capacity- 2.7kWatts / 3.0kVA

Max Configurable Power (Watts)- 2.7kWatts / 3.0kVA

Nominal Output Voltage- 230V

Output Voltage Note- Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion- Less than 5%

Output Frequency (sync to mains)- 50/60Hz +/- 3 Hz

Other Output Voltages- 220, 240

Topology- Line Interactive

Waveform type- Sine wave

Output Connections- (3) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup)

Transfer Time- 6ms typical : 10ms maximum

Input:-

Nominal Input Voltage- 230V

Input frequency- 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections- British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length- 2meters

Input voltage range for main operations- 160 - 286V

Input voltage adjustable range for mains operation- 151 - 302V

Number of Power Cords- 1

Other Input Voltages- 220, 240

Physical:-

Maximum Height- 86MM, 8.6CM

Maximum Width- 480MM, 48.0CM

Maximum Depth- 683MM, 68.3CM

Rack Height- 2U

Net Weight- 44.28KG

Shipping weight- 51.7KG

Shipping Height- 254MM, 25.4CM

Shipping Width- 600MM, 60.0CM

Shipping Depth- 980MM, 98.0CM

Units per Pallet- 8.0
