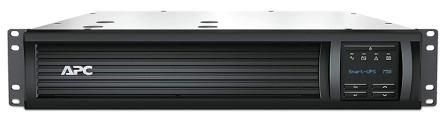

APC SMT750RMI2UC, Smart-UPS 750VA LCD RM 2U 230V with SmartConnect

Output:-

Output power capacity- 500Watts / 750VA

Max Configurable Power (Watts)- 500Watts / 750VA

Nominal Output Voltage- 230V

Output Voltage Note- Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion- Less than 5%

Output Frequency (sync to mains)- 50/60Hz +/- 3 Hz

Other Output Voltages- 220, 240

Topology- Line Interactive

Waveform type- Sine wave

Output Connections- (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)

Transfer Time- 6ms typical : 10ms maximum

Input:-

Nominal Input Voltage- 230V

Input frequency- 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections- IEC-320 C14

Input voltage range for main operations- 160 - 286V

Input voltage adjustable range for mains operation- 151 - 302V

Number of Power Cords- 1

Other Input Voltages- 220, 240

Physical:-

Maximum Height- 86MM, 8.6CM

Maximum Width- 432MM, 43.2CM

Maximum Depth- 409MM, 40.9CM

Rack Height- 2U

Net Weight- 17.27KG

Shipping weight- 21.23KG

Shipping Height- 241MM, 24.1CM

Shipping Width- 546MM, 54.6CM

Shipping Depth- 584MM, 58.4CM

Color- Black

Units per Pallet- 16.0
