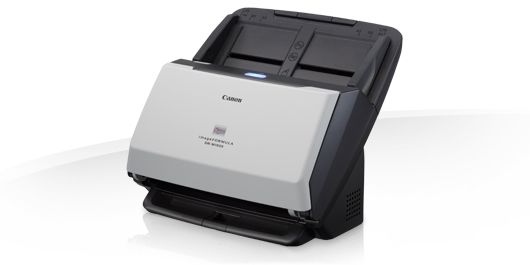

Canon DR-M160II, A4 Colour Document Scanner

*SPECIFICATIONS:-

Type:- Desktop Type Sheet Fed Scanner

Scanning sensor unit:- CMOS CIS 1 Line Sensor

Optical resolution:- 600dpi

Light source:- RGB LED

Scanning side:- Front / Back / Duplex

Interface:- High speed USB 2.0

Dimensions (WxDxH):- Tray Closed : 280mm (W) x 172 (D) x 178 (H) mm

Tray Opened: 280 (W) x 606 (D) x 366.4 (H) mm

Weight:- Approx. 3.2kg

Power requirements:- AC100 - 240V (50/60Hz)

Operating environment:- 10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH

Environmental compliance:- RoHS and ENERGY STAR

*SCANNING SPECIFICATIONS

Black and White:- 60ppm / 120ipm, Colour:- 60ppm / 120ipm

Output resolution:- 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Output mode:- Black & White/Error Diffusion/ Advanced Text Enhancement (Windows only),Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour

Suggested Daily Duty Cycle:- Approx 7,000 scans/day

*DOCUMENT SPECIFICATIONS

Width:- 50.8 - 216mm

Length:- 54 - 356mm

Thickness:- 27 - 209g/m² (0.04 - 0.25mm)

Long document mode:- 3000mm Max (selectable in MS Windows control panel)

Card scanning:- Width: 53.9mm Length: 85.5mm Thickness: 0.76mm (Embossed Card is supported)

Paper separation:- Retard Roller Method

Feeder capacity:- 60 sheets (80g/m²)

*SPECIAL FEATURES

Automatic Page Size Detection, Deskew, 3- Dimentional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shading Correction, MultiStream, Preset Gamma Curve, Skip Blank Page, Folio Mode, Scan Area Setting, Patch Code, Batch Separation with white blank sheet (Windows only), Edge Enhancement, Moire Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Colour Drift, Adding Black Margin Mode, Colour Elimination, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Stretch Adjustment of Sub-Scanning Direction, Double Feed Release, Thin Paper Mode, Double Feed Detection (Ultrasonic Sensor/ By Length), Separation Retry
