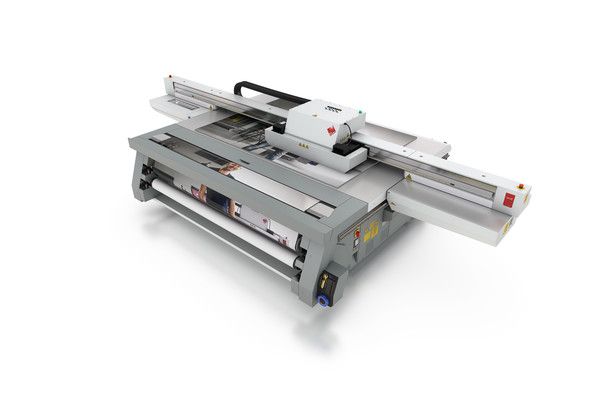

Canon Oce Arizona 480 GT Printer

PRINTING TECHNOLOGY

Printing method : Piezoelectric inkjet

Number of nozzles : 636 nozzles/color

Image technology : Océ VariaDot® imaging technology

Print resolution : Near-photographic image quality, perfect text as small as 2-pt in size

PRINT SPEEDS, MAXIMUM M²/HR (FLATBED)

Express mode : 32.8

Production-Squared mode : 24.5

Production-Smooth mode :20.3

Quality mode : 14.0

Fine Art mode : 11.3

High Definition mode : 5.9

White Ink, 2-layer : 7.0

PRINT SPEEDS, MAXIMUM M²/HR (RMO)

Express mode : 25.6

Production-Squared mode : 18.8

Production-Smooth mode : 16.9

Quality mode : 11.6

Fine Art mode : 9.4

High Definition mode : 5.2

White Ink, 2-layer : 5.8

INK SYSTEM

Colors : Black, Cyan, Magenta and Yellow UV curable inks in two liter, quick-exchange ink bags; White and Varnish UV curable ink

packaged in one liter, quick-exchange ink bags

SYSTEM DESIGN

Flatbed : True flatbed architecture for printing to rigid media or objects

Roll media : Roll Media Option for flexible media

ROLL MEDIA OPTION

Roll width : Roll width: 0.9 m to 2.2 m

Print width : Print width: 2.19 m max

Roll diameter: up to 240 mm

Core Inner diameter : 76.2 mm

Roll mass : up to 50 kg, width independent

Media winding direction (input) : print side in or out

OPERATING ENVIRONMENT

Electrical : 2x50 Hz, 200 to 240 VAC, single phase, 16A or 2x60 Hz, 208 to 240 VAC, single phase, 20A

Temperature : 18˚ to 30˚ C

Relative humidity : 30-70%, non-condensing (certain media may require a higher RH operating range)

Dimensions (printer only) : 4.66 m x 2.0 m

Dimensions (with RMO) : 4.66 m x 2.3 m

Table height : 0.88 m

Overall height: 1.3 m

Weight (printer only): 775 kg

Weight (with RMO) : 1025 kg
