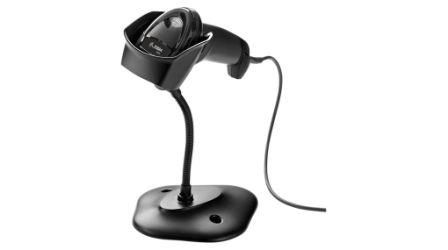

Zebra DS2208-SR7U2100SGW, SR, 1D/2D, 645nm, Roll 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Black, Wired, USB/RS-232/RS-485/Keyboard Wedge

Barcode Scanners- DS2208 Kit

Design-
International Protection (IP) code- IP42
LED indicators- Yes
Product colour- Black
RoHS compliance- Yes

Operational conditions
Operating relative humidity (H-H)- 5 - 95 %
Operating temperature (T-T)- 0 - 50 °C
Storage temperature (T-T)- -40 - 70 °C

Package dimensions
Depth- 21.7 cm
Gross Weight- 0.684 kg
Height- 17.8 cm
Width- 26.8 cm

Performance
International Protection (IP) code- IP42
LED indicators- Yes
Product colour- Black
RoHS compliance- Yes

Ports & interfaces-
Bluetooth Low Energy (BLE)- Y
Bluetooth version- 4.0
Connectivity technology- Wired
Standard interfaces- USB, RS-232, RS-485, Keyboard wedge
Wireless range- 10 m

Power-
AC adapter output voltage- 5 V
Battery capacity- 2400 mAh
Battery life- 100 Hour
Battery technology- Lithium-Ion (Li-Ion)
Power consumption- 250 mA
Power source type- DC

Product dimensions
Depth (product,cm)- 18 cm
Height (product,cm)- 7.5 cm
Net Weight (Product, kg)- 0.26 kg
Product Width- 12.5 cm

Scanning-
2D (matrix & stacked) barcodes supported- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Linear (1D) barcodes supported- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
Motion tolerance (cm/s)- 13
Optical sensor resolution (W x H)- 640 x 480 Pixels
Pitch reading angle- -65 - 65 °
Scanner type- 1D/2D
Sensor type- LED
Tilt reading angle- -65 - 65 °
Type- Handheld bar code reader
Wavelength- 645 nm
Working distance- 36.8 cm
Yaw reading angle- -65 - 65 °
Technical details-
Sustainability certificates- RoHS
