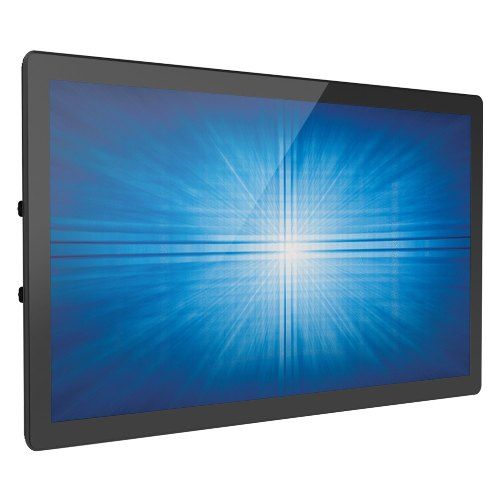

Elo 2494L 23,8" Open-frame LCD Touch Display

Display:-

Display diagonal- 23.8 "

Response time- 16 ms

Display brightness- 225 cd/m²

Display resolution- 1920 x 1080 pixels

Display type- TFT-LCD

Display technology- LED

Contrast ratio (typical)- 3000:1

Horizontal scan range- 30 - 82 kHz

Vertical scan range- 50 - 75 Hz

Viewing angle, horizontal- 178 °

Viewing angle, vertical- 178 °

Aspect ratio- 16:9

Display viewable area (HxV)- 527.04 x 296.46 mm

Full HD

Display diagonal (metric)- 60.45 cm

Supported graphics resolutions- 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

Supported video modes- 1080i,1080p

Display number of colours- 16.78 million colours

Touch technology- Single-touch

Mean time between failures (MTBF)- 50000 h

Number of OSD languages- 8

Weight & dimensions:-

Width- 570.1 mm

Height- 341.1 mm

Depth- 37.1 mm

Weight- 6390 g

Additional information

Warranty- 3 years

Homepage- https://www.elotouch.com/2494l-reva.html

Contrast- 3000:1

Dimensions (mm)- 570.1mm x 342mm x 37.1mm

Form Factor- 16:9

Resolution- 1920 x 1080

Vesa maximal- 200x100mm VESA mount on rear of unit
