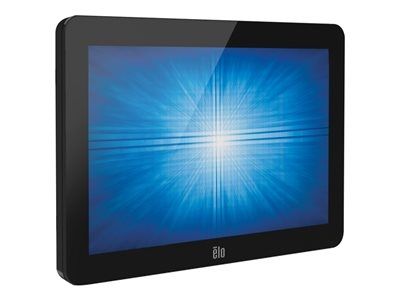

Elo E324341, 1002L 10" Touchscreen Monitor
The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
£0.00
Inc. Tax: £0.00
In stock
SKU
E324341
Part Number(s)-
PCAP (Worldwide) - E155834
Non-Touch (Worldwide) - E324341
Enclosure Color- Black
Touch Technology & Capacity- Non-Touch
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size- 10.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness- 1.12" / 28.45 mm panel depth
Aspect Ratio- 16:10
Active Area (mm)- 8.54" x 5.34" / 216.96 mm x 135.6 mm
Resolution- 1280 x 800
Viewing Angle- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors- 262,000
Brightness (typical):-
LCD panel: 350 nits
PCAP + DC Power: 315 nits
PCAP + USB-C 5V power: 200 nits
Response Time-total (typical)- 29 msec
Contrast Ratio- 800:1
Touch Interface- USB
Surface Treatment- Anti-glare
Monitor Dimensions (without Stand)- 10.03" x 6.99" x 1.14" / 254.80 mm x 177.50 mm x 29.00 mm
Shipping Box Dimensions- 12.4" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm
Weight (Unpackaged)- 1.95 lbs / 0.8842 kg
Weight (Packaged)- 4.02 lbs / 1.8266 kg
Operating Temperature- 0°C to 40°C / 32°F to 104°F
Storage Temperature- -20°C to 60°C / -4°F to 140°F
Humidity- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF- 50,000 hours demonstrated
| Manufacturer Part No | E324341 |
|---|
