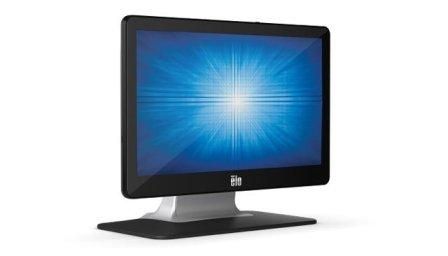

Elo E683204, 1302L 13" Touchscreen Monitor
The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
£0.00
Inc. Tax: £0.00
In stock
SKU
E683204
Part Number(s):-
Black With Stand (Worldwide) - E683204
Black Without Stand (Worldwide) - E683595
White With Stand (Worldwide) - E683396
White Without Stand (Worldwide) - E683787
Enclosure Color- White or Black
Touch Technology & Capacity- PCAP (Projected Capacitive) - 10 Touch
Diagonal Size- 13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio- 16:9
Active Area (mm)- 11.57" x 6.51" / 293.76 mm x 165.24 mm
Resolution- 1920 x 1080
Viewing Angle- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors- 16.7 million
Brightness (typical)- Panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical)- 25 msec
Contrast Ratio- 800:1
Touch Interfaces- USB
Surface Treatment- Anti-glare
Power Consumption (Typical):-
Monitor + adapter
ON: 9.8W
SLEEP: 1.39W
OFF: 0.18W
Monitor Dimensions (without Stand)- 8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm
Monitor Dimensions (with Stand)- 10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm
Shipping Box Dimensions:-
Without Stand: 11.02" x 15.95" x 6.30" / 280 mm x 405 mm x 160 mm
With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mm
Weight (Unpackaged):-
Without Stand: 2.69 lbs / 1.22 kg
With Stand: 5.11 lbs / 2.32 kg
| Manufacturer Part No | E683204 |
|---|
