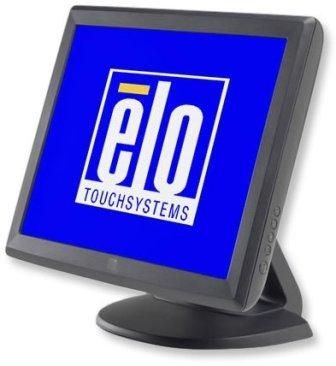

Elo E700813, 1515L 15" Touchscreen Monitor
The Elo 1515L 15-inch standard format touchscreen monitor delivers professional-grade built for touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1515L offers flexibility for mounting and two touch technology options.
£0.00
Inc. Tax: £0.00
In stock
SKU
E700813
Part Number(s)-
IntelliTouch (Worldwide) - E700813
IntelliTouch (EMEA) - E399324
AccuTouch (Worldwide) - E210772
AccuTouch (EMEA) - E344320
AccuTouch (China) - E109123
Enclosure Color- Dark Gray
Touch Technology & Capacity-
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size- 15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio- 4:3
Active Area (mm)- 12.0" x 9.0" / 304mm x 228mm
Resolution- 1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)
Viewing Angle- Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Number of Colors- 16.7 million
Brightness (typical)-
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
Response Time-total (typical)- 8 msec
Contrast Ratio- 800:1
Input Video Format- Analog VGA
Input Video Signal Connector- Mini D-Sub 15-Pin VGA type
Power Supply- Internal AC, Optional external DC (power brick)
Monitor Dimensions (with Stand)- 13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm
Shipping Box Dimensions- 17.52" x 14.96" x 10.24" / 445mm x 380mm x 260mm
Weight (with stand)- 10.6 lb / 4.8 kg
Weight (without stand)- 7.3 lb / 3.3 kg
Shipping Weight (With stand)- 15.4 lb / 7.0 kg
Operating Temperature- 0°C to 40°C / 32°F to 104°F
Storage Temperature- -20°C to 60°C / -4°F to 140°F
| Manufacturer Part No | E700813 |
|---|
