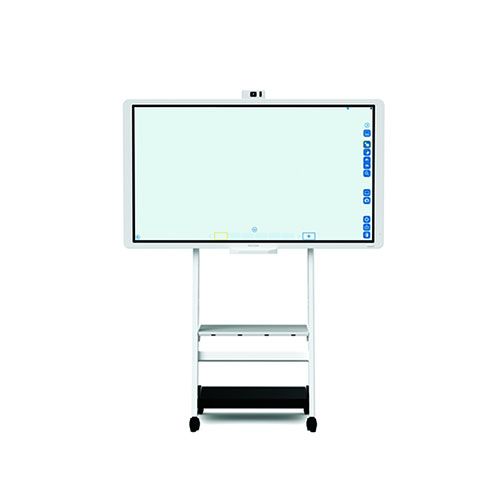

Ricoh D5520, Interactive Whiteboard

GENERAL

Interface (input)- Video- VGA, HDMI, DVI-D, DisplayPort™

Interface (input) - Audio- Line 3.5 mm

Interface (output) - Video- DisplayPort™

Interface (output) - Audio- Speaker-out

Interface (output) - Control USB2.0 Type B

Microphone Built-in microphone

Enhanced features- Text OCR, IWB screen sharing to Ricoh UCS P3500, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function

Enhanced features - Data saving form PDF v1.4

Enhanced features - Data saving- USB memory

Built-in speaker- 12 W x 2

Dimensions (W x D x H)- 1345 x 119 x 770 mm

Weight - Mainframe- 43 kg

Weight - Full configuration- 46 kg

Power source 100 - 240 V, 50/60 Hz

Control- RS-232C(PC-control)

DISPLAY PANEL-

Panel size - Diagonal- 54.64" wide (1387 mm)

Display type Liquid crystal display

Backlight- LED system

Effective display area (W x H)- 1209.6 x 680.4 mm

Resolution - Maximum 1,920 x 1,080 (Full HD)

Colour - Maximum Over 16700000 colours

Brightness - Maximum 450 cd/m²

Aspect ratio 16 : 9

Contrast ratio- 1100 : 1

Pixel pitch- 0.63 x 0.63 mm

Response speed- 12 ms (Grey to Grey, Ave.)

Cover glass - Thickness- 3mm

Cover glass - Anti-glare- AG pre-treated

TOUCH SYSTEM-

Touch technology- ShadowSense™

Touch point 10 point (display only)

Touch resolution- 1920 x 1080

Touch pen request- >= 10 mm

Touch output USB 2.0 (type B)

Detection system electronic pen- Light interception method (optional pen sensor kit and controller required)
