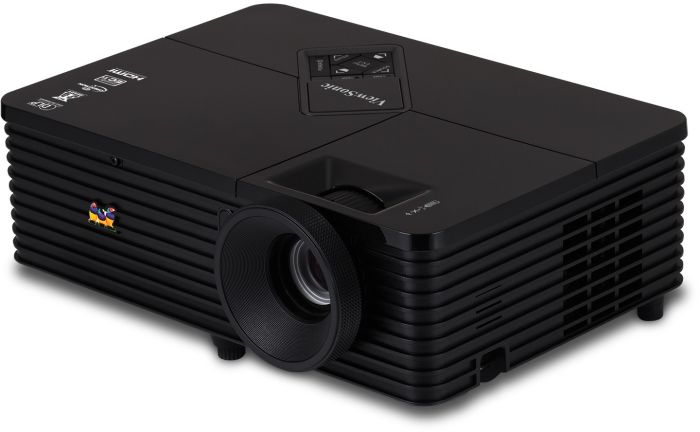

ViewSonic PJD6345 XGA Projector
3,500 ANSI lumens with 15000:1 contrast ratio for clear, razor-sharp images
BrilliantColor technology provides exceptional display quality
Presentations made easy with Advanced Connect Technology – display presentations over a wired or wireless LAN, via USB port, directly from a USB
flash drive, or from smart phones and tablets using a mobile app
LAN control for centralized remote management
3D Blu-ray ready HDMI
DynamicEco technology for total control of audience’s focus
Maintenance free with filter-less design
Long-lasting reliable picture quality & superior color performance
6-segment color wheel design, auto source detection, support HD signals & integrated speaker
PC 3D ready & up to 120Hz refresh rate powered by DLP Link Technology
Long lamp life up to 5,000 hours
Environmentally friendly Eco-mode saves money and power
Small & light for easy portability
BrilliantColor technology provides exceptional display quality
Presentations made easy with Advanced Connect Technology – display presentations over a wired or wireless LAN, via USB port, directly from a USB
flash drive, or from smart phones and tablets using a mobile app
LAN control for centralized remote management
3D Blu-ray ready HDMI
DynamicEco technology for total control of audience’s focus
Maintenance free with filter-less design
Long-lasting reliable picture quality & superior color performance
6-segment color wheel design, auto source detection, support HD signals & integrated speaker
PC 3D ready & up to 120Hz refresh rate powered by DLP Link Technology
Long lamp life up to 5,000 hours
Environmentally friendly Eco-mode saves money and power
Small & light for easy portability
£1,114.21
Inc. Tax: £1,337.05
In stock
SKU
PJD6345
DISPLAY
Type : 0.55" Digital Micromirror Device (DLP™)
Resolution : XGA 1024x768 (native)
Lens : 1.1x Manual optical zoom / manual optical focus
Zoom Factor : N/A
Keystone : Vertical digital keystone correction (+/- 40º)
Display Size : 28 – 300 in. / 0.7 – 7.6 m (diagonal)
Throw Distance : 3.9– 43.4 ft. / 1.2 – 13.2 m
Throw Ratio : 1.97~2.17:1
Lamp Type : 240 watt
Lamp Life (normal/eco-mode) 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)
Brightness : 3500 Lumens
Contrast Ratio : 15,000:1 (w/ DynamicEco™)
Aspect Ratio : 4:3 (native)
Color Wheel : 5-seg RGBYW / 7200rpm
Color Depth : 30 bits, 1.07B Color (10+10+10)
Color Gamut : N/A
INPUT SIGNAL
Computer and Video : NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
Frequency : Fh: 31–100KHz, Fv: 48–120Hz
COMPATIBILITY
PC : VGA to 1600x1200 UXGA
Mac® : Up to UXGA (may require MAC adaptor)
CONNECTOR
Audio Input : 3.5mm mini jack (x2)
Audio Out : 3.5mm mini jack
RGB Input : 15-pin mini D-sub (x2)
Composite Input : RCA jack
S-Video Input : 4-pin mini-DIN
Component : 15-pin mini D-sub (x2, shared with RGB)
RGB Output : 15-pin mini D-sub
Control : RS-232 (DB-9)
Digital : HDMI
Network : RJ45
USB : Type A (card reader and wireless dongle) Type B (mouse control and service) Mini Type B (USB display)
Mic-In : 3.5mm mini jack (shared with Audio 2)
Screen Trigger : N/A
Card Reader : N/A
AUDIO
Speakers : 16-watt (x1)
Amplifier : N/A
DIMENSIONS (WxHxD) : 11.6 x 4.5 x 8.6 in. / 294 x 113 x 219 mm
WEIGHT : 4.7 lbs. / 2.1 kg
Type : 0.55" Digital Micromirror Device (DLP™)
Resolution : XGA 1024x768 (native)
Lens : 1.1x Manual optical zoom / manual optical focus
Zoom Factor : N/A
Keystone : Vertical digital keystone correction (+/- 40º)
Display Size : 28 – 300 in. / 0.7 – 7.6 m (diagonal)
Throw Distance : 3.9– 43.4 ft. / 1.2 – 13.2 m
Throw Ratio : 1.97~2.17:1
Lamp Type : 240 watt
Lamp Life (normal/eco-mode) 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)
Brightness : 3500 Lumens
Contrast Ratio : 15,000:1 (w/ DynamicEco™)
Aspect Ratio : 4:3 (native)
Color Wheel : 5-seg RGBYW / 7200rpm
Color Depth : 30 bits, 1.07B Color (10+10+10)
Color Gamut : N/A
INPUT SIGNAL
Computer and Video : NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
Frequency : Fh: 31–100KHz, Fv: 48–120Hz
COMPATIBILITY
PC : VGA to 1600x1200 UXGA
Mac® : Up to UXGA (may require MAC adaptor)
CONNECTOR
Audio Input : 3.5mm mini jack (x2)
Audio Out : 3.5mm mini jack
RGB Input : 15-pin mini D-sub (x2)
Composite Input : RCA jack
S-Video Input : 4-pin mini-DIN
Component : 15-pin mini D-sub (x2, shared with RGB)
RGB Output : 15-pin mini D-sub
Control : RS-232 (DB-9)
Digital : HDMI
Network : RJ45
USB : Type A (card reader and wireless dongle) Type B (mouse control and service) Mini Type B (USB display)
Mic-In : 3.5mm mini jack (shared with Audio 2)
Screen Trigger : N/A
Card Reader : N/A
AUDIO
Speakers : 16-watt (x1)
Amplifier : N/A
DIMENSIONS (WxHxD) : 11.6 x 4.5 x 8.6 in. / 294 x 113 x 219 mm
WEIGHT : 4.7 lbs. / 2.1 kg
| Manufacturer Part No | PJD6345 |
|---|
