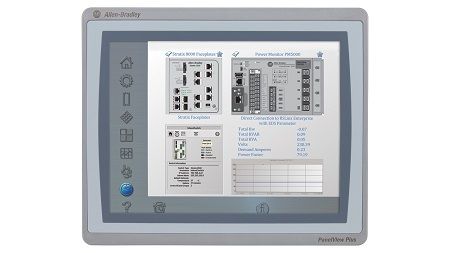

The Allen-Bradley 2711P-T15C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface.
Display Size: 15 in.
Brand: Allen-Bradley
Manufacturer: Rockwell Automation / Allen-Bradley
Product Family: PanelView Plus 7 Performance terminals
Product Type: PanelView Plus 7 15-inch Performance Terminals
Operator Input: Touch
Touch screen: Analog resistive touchscreen
Actuation rating: 1 million presses
Operating force: 100 grams
Display Type: Color active-matrix TFT
Display Area: 304 x 228 mm (12.0 x 9.0 in.)
Resolution: 1024 x 768 XGA, 18-bit color graphics
Backlight: White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Application memory: 1GB system; User memory 512 MB
Communication ports: Two (2) Ethernet, Three (3) USB host
Input Voltage range: 18-30 VDC
Touch: Analog resistive Actuation: 1 million presses; operating force: 100 g
System Memory: 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Power Consumption: 50 W max (2.1 A at 24V DC)
Part Number/Catalog No. 2711P-T15C22D9P
Product Line: Panelview Plus 7
Input Type: Touchscreen
Display Color: Color
Memory: 512 Mb
Input Voltage: 24 VDC
Backlight: LED
Manufacturer Part No | 2711P-T15C22D9P |
---|
