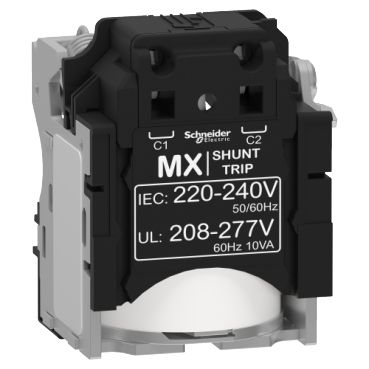

Schneider LV429387, MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
£0.00
Inc. Tax: £0.00
In stock
SKU
LV429387
Frequently Asked Questions and Answers
Ask a question
Full service and support
Chat with us
* Device short name- MX
* Product or component type- Voltage release
* Device application- Control
* Voltage release type- Opening coil, Shunt trip release
* [Uc] control circuit voltage- 220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz
* Operating threshold- 0.7...1.1 x Un opening
* Response time- 50 ms
* Control signal type- Impulse, Maintained
* Impulse duration- >= 20 ms
* Supply inrush power- 10 VA
* Auxiliary connection terminal- Spring 0.5…1.5 mm² (AWG 20...AWG 16)
* Wire stripping length- 7 mm
* Unit Type of Package 1- PCE
* Number of Units in Package 1- 1
* Package 1 Height- 4.500 cm
* Package 1 Width- 4.900 cm
* Package 1 Length- 6.300 cm
* Package 1 Weight- 118.000 g
* Unit Type of Package 2- BB1
* Number of Units in Package 2- 10
* Package 2 Height- 7.400 cm
* Package 2 Width- 10.600 cm
* Package 2 Length- 23.800 cm
* Package 2 Weight- 1.240 kg
* Unit Type of Package 3- S03
* Number of Units in Package 3- 60
* Package 3 Height- 30.000 cm
* Package 3 Width- 30.000 cm
* Package 3 Length- 40.000 cm
* Package 3 Weight- 7.876 kg
More Information
| Manufacturer Part No | LV429387 |
|---|
